UL2651 28AWG Card Edge Connector 10 - 64 Pin Ribbon Cable Connector 2.54mm Pitch

Ask Lasest Price
Brand Name :	HONSHI
Model Number :	HS-CEXXPN0BN01
Supply Ability :	1000000 Piece/Pieces per Week
Price :	$0.20 - $1.50/pieces
Certification :	ROHS/SGS/UL
Payment Terms :	T/T,Paypal
Delivery Time :	10-15 Day

Add to Cart

Product Details
Company Profile

UL2651 28AWG Card Edge Connector 10 - 64 Pin Ribbon Cable Connector 2.54mm Pitch

Card Edge Connector Solt 10-64Pin 2.54 Mm Pitch UL2651 28AWG Ribbon Cable Connector

Product Name	CE/ IDC Connector
Pitch	2.54mm
Positions	10P-64P
Current Rating	3A
Contact Resistance	20mΩ Max
Withstand Voltage	500V /1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Phosphor bronze
Contact Plating	Au Or Sn over Ni
Insulator Material	PBT ( UL94V-0 )

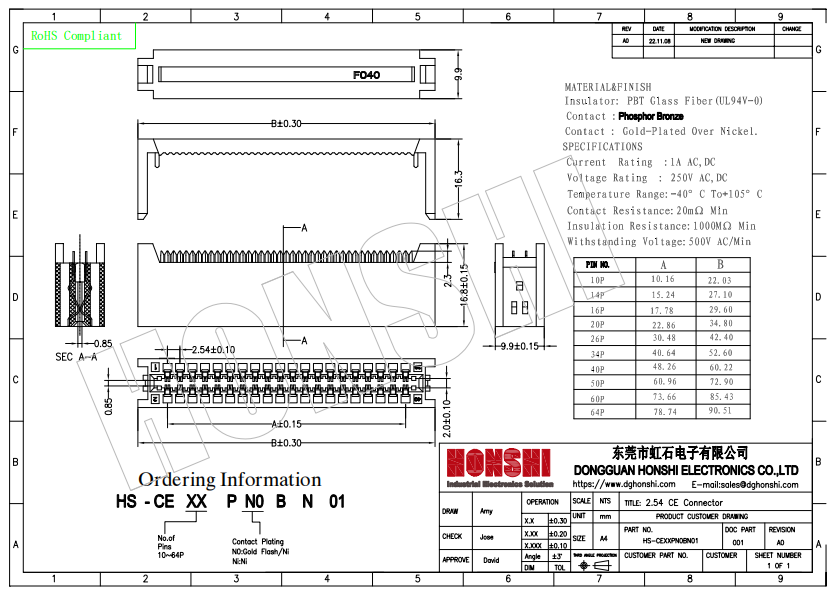

2.54mm Latch Connector SMT 6 8 10 18 20 26 30 34 40 50 64Pin Ejector Header Connector 1 Drawing:HS-CEXXPN0BN01.pdf

Product name: CE / IDC Connector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

4. Widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.
