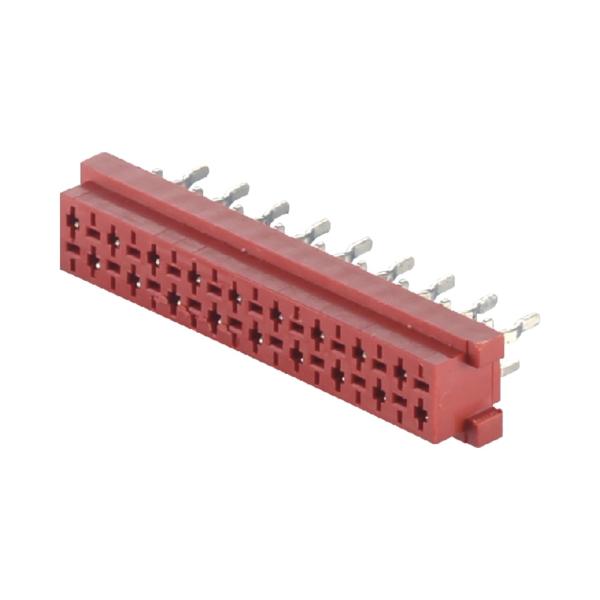

    Straight IDC Female Connector Micro Match 4 6 8 10 20 Pin 1.27mm Pitch

    Ask Lasest Price
    Brand Name : HONSHI
    Model Number : 5910-FXXSSNRWX01
    Price : $0.02 - $0.10/pieces
    Certification : ROHS/SGS/UL
    Payment Terms : T/T,Paypal
    Supply Ability : 100000kpcs
    Delivery Time : 10-15 Day
    • Product Details
    • Company Profile

    Straight IDC Female Connector Micro Match 4 6 8 10 20 Pin 1.27mm Pitch

    1.27mm Pitch Female Connector Micro Match 4 6 8 10 20 Pin Straight Red IDC Connector


    Product NameMicro Match Connector
    Pitch1.27/2.54mm
    Positions4P-24P
    Current Rating3A
    Contact Resistance20mΩ Max
    Withstand Voltage500V /1000V AC/DC
    Insulation Resistance1000mΩ Min
    Operation Temperature﹣40℃ to +105℃
    Contact MaterialBrass
    Contact PlatingAu Or Sn over Ni
    Insulator MaterialPBT ( UL94V-0 )

    2.54mm Latch Connector SMT 6 8 10 18 20 26 30 34 40 50 64Pin Ejector Header Connector 1Drawing:5910-FXXSSNRNX01.pdf


    Product name: Micro Match / Red IDC Connector


    1. Product features: high temperature resistant to high voltage electrical conductivity

    2. Product material: PBT, plating surface treatment: gold-plated or tin plating

    3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

    4. Widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc


    Service idea:


    1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

    2. Quick response and effective communication, refined service timely delivery.

    3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

    4. Free sample, the quality is safe and reliable, the price is competitive.
